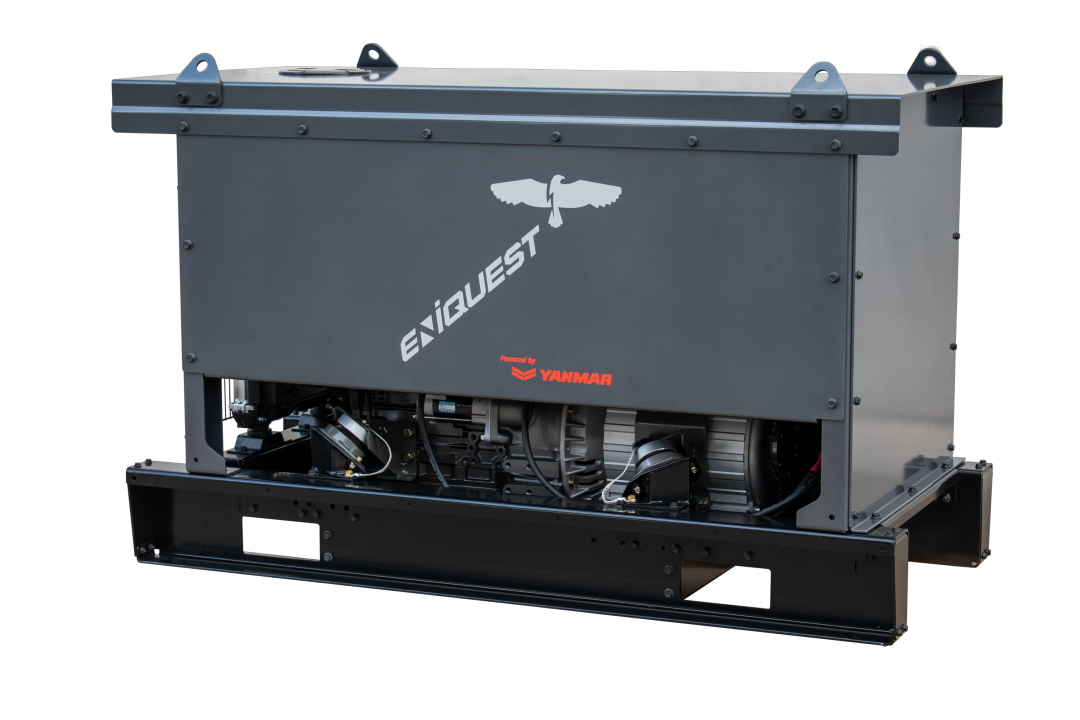

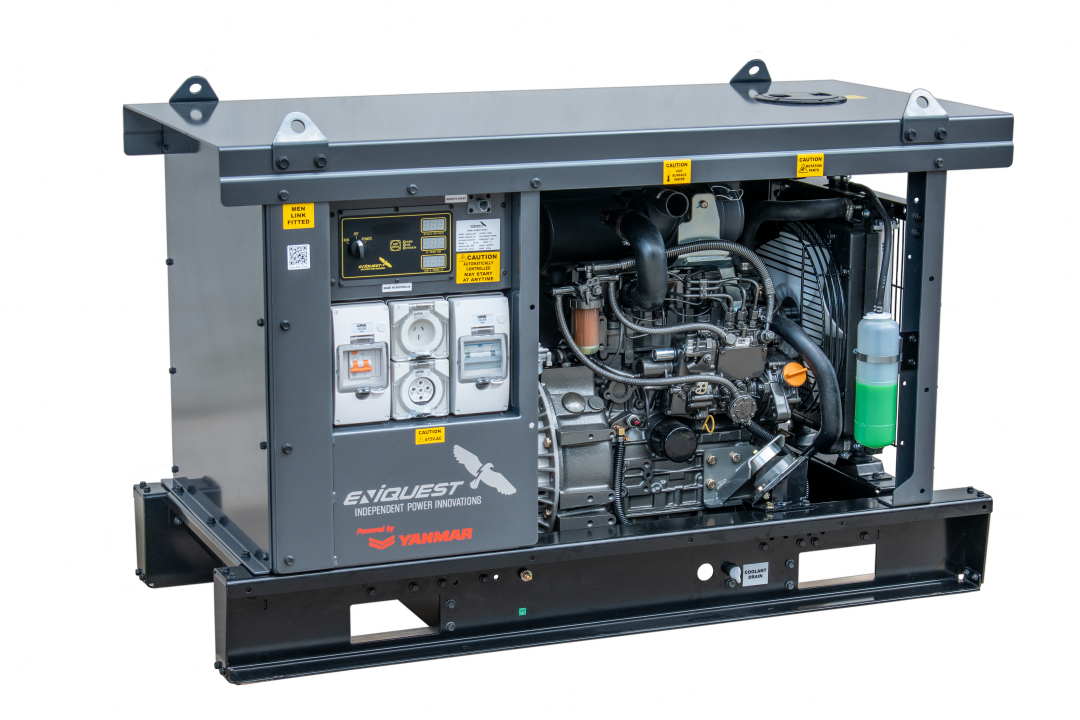

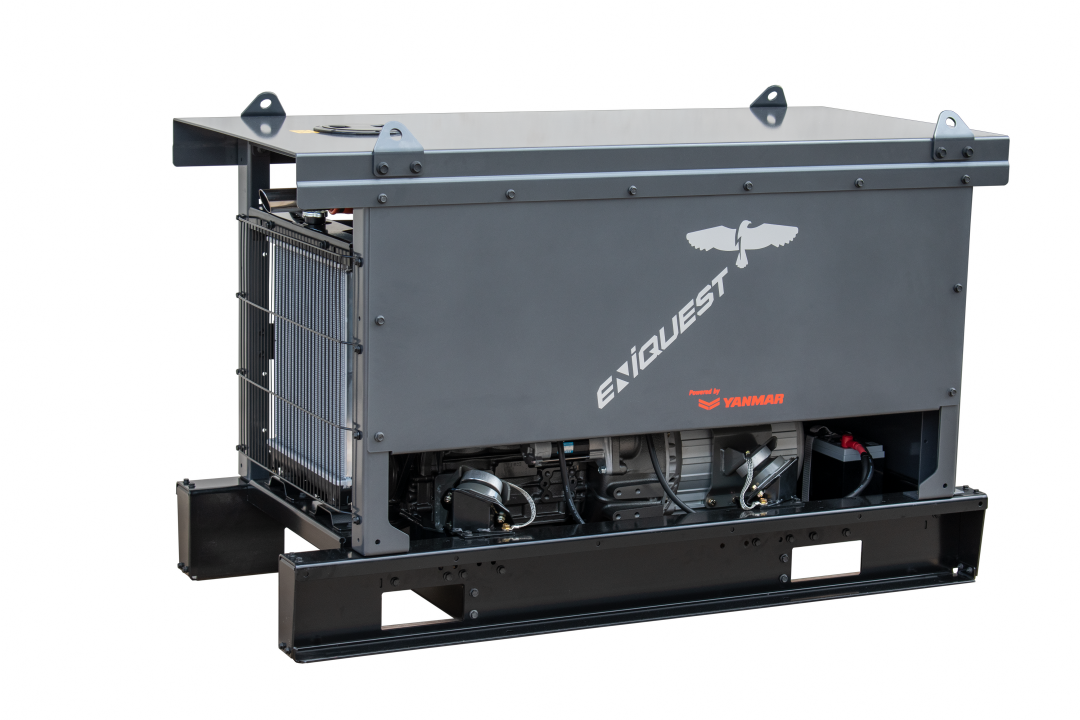

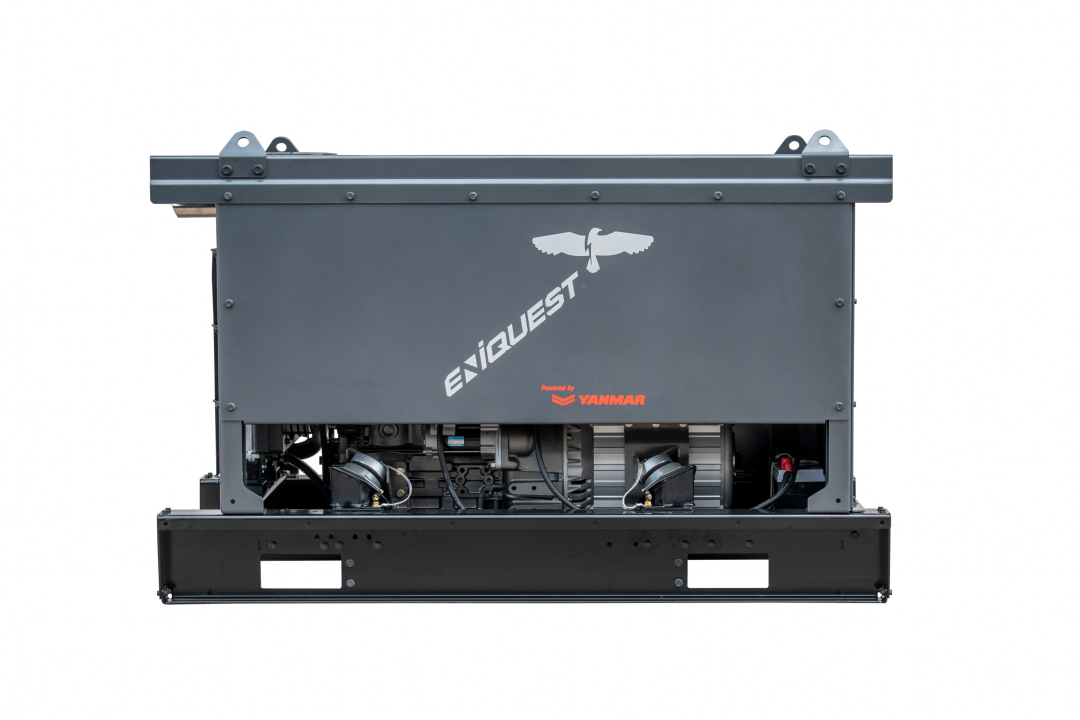

Stockman 200 Semi Enclosed Diesel Generator

The Stockman 200, Semi-Enclosed diesel generator is world leading, designed specifically for the agriculture sector, particularly for pumping and irrigation. Its a 20kVA three phase diesel generator with the optional single phase output. The oversized permanent magnet alternators are perfect for starting bore pumps with high starting power demands without oversizing the generator.

The Stockman 200 diesel generator has been a great addition for many farms in Australia. Known for its robustness in the paddocks with its aluminium panels, zinc rich primed base frame and the reliability with the Yanmar engine and RFL alternators. The Stockman generators are hand-built here in Queensland, using locally sourced components.

Reliability is key, the alternators used in the Stockman series of generators do not use electronics to regulate voltages. This removes a common failure point seen in most generators. A mechanical design, the pure sinewave output is completely natural and perfect for sensitive electronics. The Stockman 200 comes with a 2 year, 2,000 hour warranty for peace of mind.

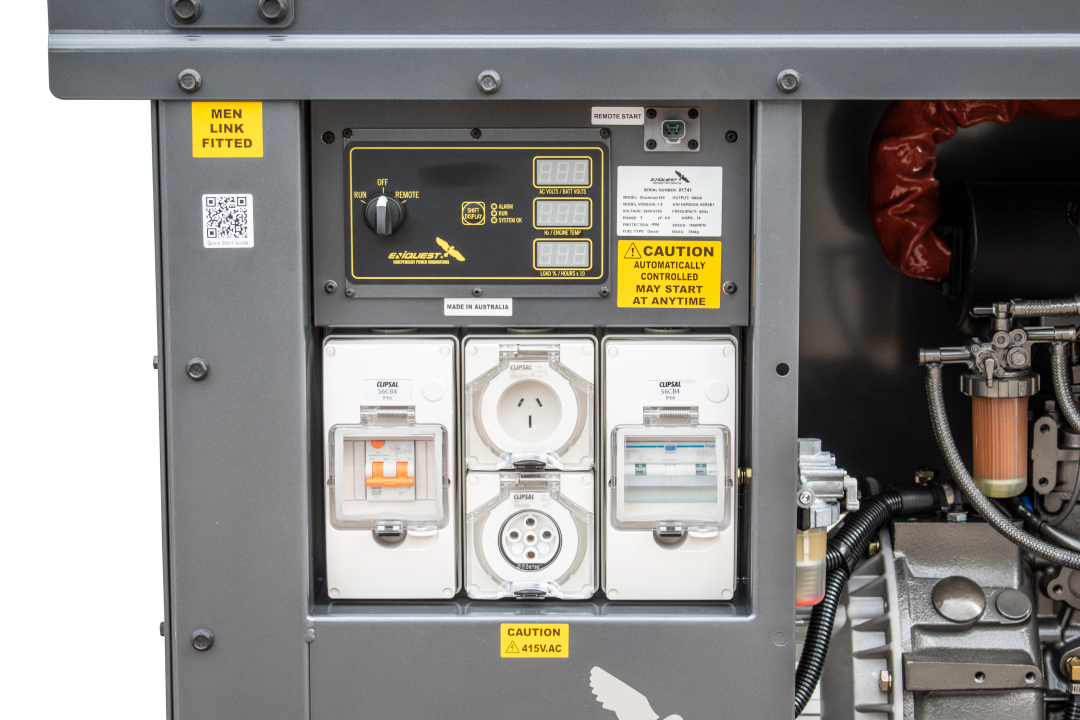

Our PM330 controller designed by us is manufactured in Queensland. This is a simple, reliable and powerful design using solid state relays, LED displays and a conformal coated single circuit board layout. The best part is that it draws absolutely no power when in standby mode including remote start.

There are a wide range of options available for the Stockman series. This includes larger fuel tanks, 7 day start/stop timers and many more.

Unsure if this is the right size for you? Use our simple generator calculator to work out the correct size for your application.

Download Brochure
Hand built, Australian Made product
Permanent Magnet Alternator with Pure Sine Wave Voltage Output
Class leading fuel economy
Mechanical Design that Self Regulates Voltage, No AVR Required
Silenced Enclosure with Premium Studio Quality Sound Insulation and Dual Muffler Setup
General Service Components At One Side, 250 Hour Service Intervals
Rust Resistant with Aluminium Panels & Zinc Rich Primed Steel Base Frame
PM330 Controller with Full Engine Protection and 2-Wire Remote Start, Made in Australia

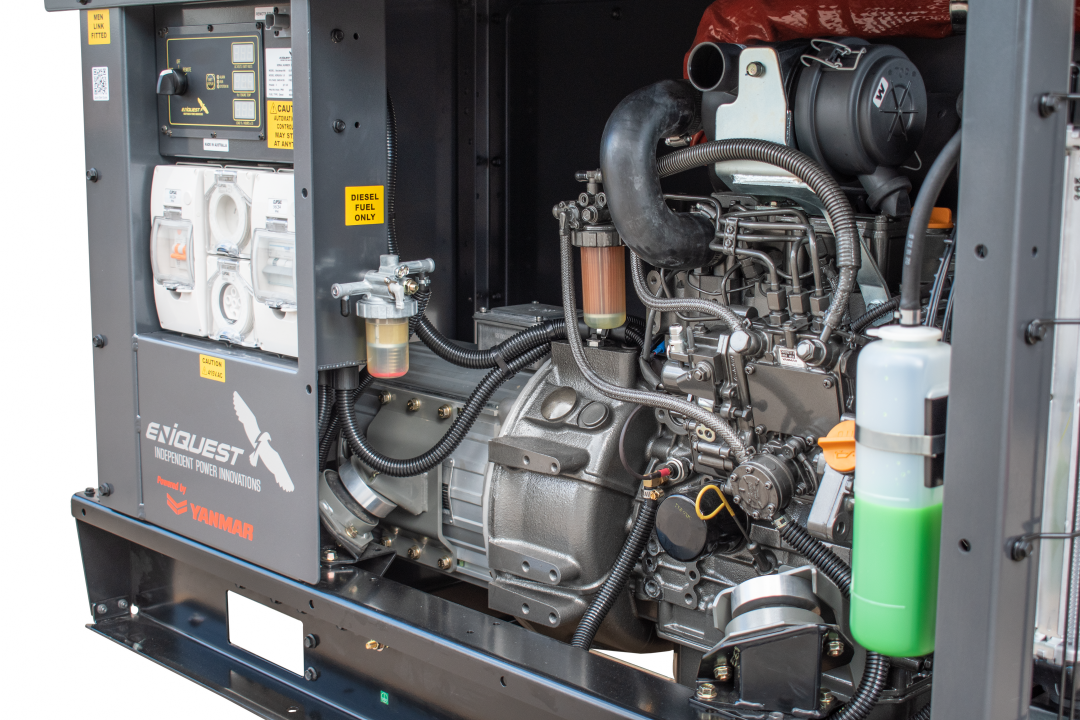

World Renowned Yanmar Industrial Engine
40L Internal, 200L or 400L Fuel Tank
The Stockman Semi Enclosed models have no onboard tank. If an external tank is not available, our 40L internal or 200 or 400L underbase tanks are a perfect option. Bunded and non-bunded options are available.
140L Bunded Fuel Tank
A 140L tank will keep running without needing to refuel as often. Perfect for when the generator is in a hard to access setting.
24 Hour Countdown Timer
The easy to use digital countdown timer allows the user to set the generator to run for a pre-determined time, then shut the generator down. This replaces the need to run the fuel tank dry which creates a lot of issues.
7-Day Timer
The 7-Day timer is a perfect option for allowing the user to set the generator to start at any particular time and day, and shut the generator down at any time and day.
Three Phase Power
This generator is standard as a single-phase output. For three-phase, we change the alternator and reconfigure the controller for three phase. Supplied with a 20A, 5 pin outlet with RCBO protection.
Pump Pressure Shutdown
Want the generator to shut down when your water pressure reaches a pre-determined setting. This uses a mechanical gauge that reads your water pressure and shuts the generator down when pressure is too high or too low.
Hardwire Terminal Studs
If the generator is going to be used as backup power, then it may be better to have the power hardwired to the generator rather than extension cords. This option removes the outlets and replaces the RCBO’s to standard MCB’s. *Single phase only
Mine Spec
Needed to suit mining application? We fit the 140L under base fuel tank, single lift point, e-stop, battery isolator, lockable cabinet, forklift pockets and a fire extinguisher to the generator. *May not suit all mine spec requirements, contact us to discuss.
Emergency Stop (E-Stop)
An E-Stop may be required to meet site safety requirements. This E-stop is located in a convenient location on the generator controller.
Single Lifting Point
The generator has 4x lifting points on the top corners of the enclosure. Sometimes it’s easier to lift with just one point, this option adds a single lift point in the centre, and keeps the corner points to use as tie downs for transport.

Standard Specification

  • ModelStockman 200 Semi Enclosed
  • Continuous Output20kVA | 16kW
  • Voltage230/400V 50Hz Three Phase
  • Current @ 0.8pf28A Per Phase
  • Outlets1x 32A 5 Pin, 1x 15A 3 Pin GPO
  • Engine4TNV88-GGE
  • Engine RPM1500
  • Fuel Tank CapacityNone, Optional 40L Internal, 200L or 400L Underbase
  • Fuel Consumption3.38L Per Hour
  • Alternator ModelRFL4-30
  • Alternator Type4 Pole Permanent Magnet Radial Flux
  • Voltage ControlInherent, Non-Electronic (Self Regulating)
  • THD %2.2%
  • Alternator Rating30kVA
  • Alternator Efficiency94.6%
  • Generator ControlPM330 with 2 Wire Remote Start and Full Engine Protection
  • Noise at Full Load72dB(A) at 7 Metres
  • Dimensions1425 x 689 x 918
  • Weight475kg
  • Warranty2 Years, 2000 Hours
Bore Pumping & Irrigation
Centre Pivot
General Agriculture Power
Mining
Construction and Site Power
Standby Back Up Power
Solar & Off-Grid
Telecommunications
Emergency and Disaster Power

Description

The Stockman 200, Semi-Enclosed diesel generator is world leading, designed specifically for the agriculture sector, particularly for pumping and irrigation. Its a 20kVA three phase diesel generator with the optional single phase output. The oversized permanent magnet alternators are perfect for starting bore pumps with high starting power demands without oversizing the generator.

The Stockman 200 diesel generator has been a great addition for many farms in Australia. Known for its robustness in the paddocks with its aluminium panels, zinc rich primed base frame and the reliability with the Yanmar engine and RFL alternators. The Stockman generators are hand-built here in Queensland, using locally sourced components.

Reliability is key, the alternators used in the Stockman series of generators do not use electronics to regulate voltages. This removes a common failure point seen in most generators. A mechanical design, the pure sinewave output is completely natural and perfect for sensitive electronics. The Stockman 200 comes with a 2 year, 2,000 hour warranty for peace of mind.

Our PM330 controller designed by us is manufactured in Queensland. This is a simple, reliable and powerful design using solid state relays, LED displays and a conformal coated single circuit board layout. The best part is that it draws absolutely no power when in standby mode including remote start.

There are a wide range of options available for the Stockman series. This includes larger fuel tanks, 7 day start/stop timers and many more.

Unsure if this is the right size for you? Use our simple generator calculator to work out the correct size for your application.
