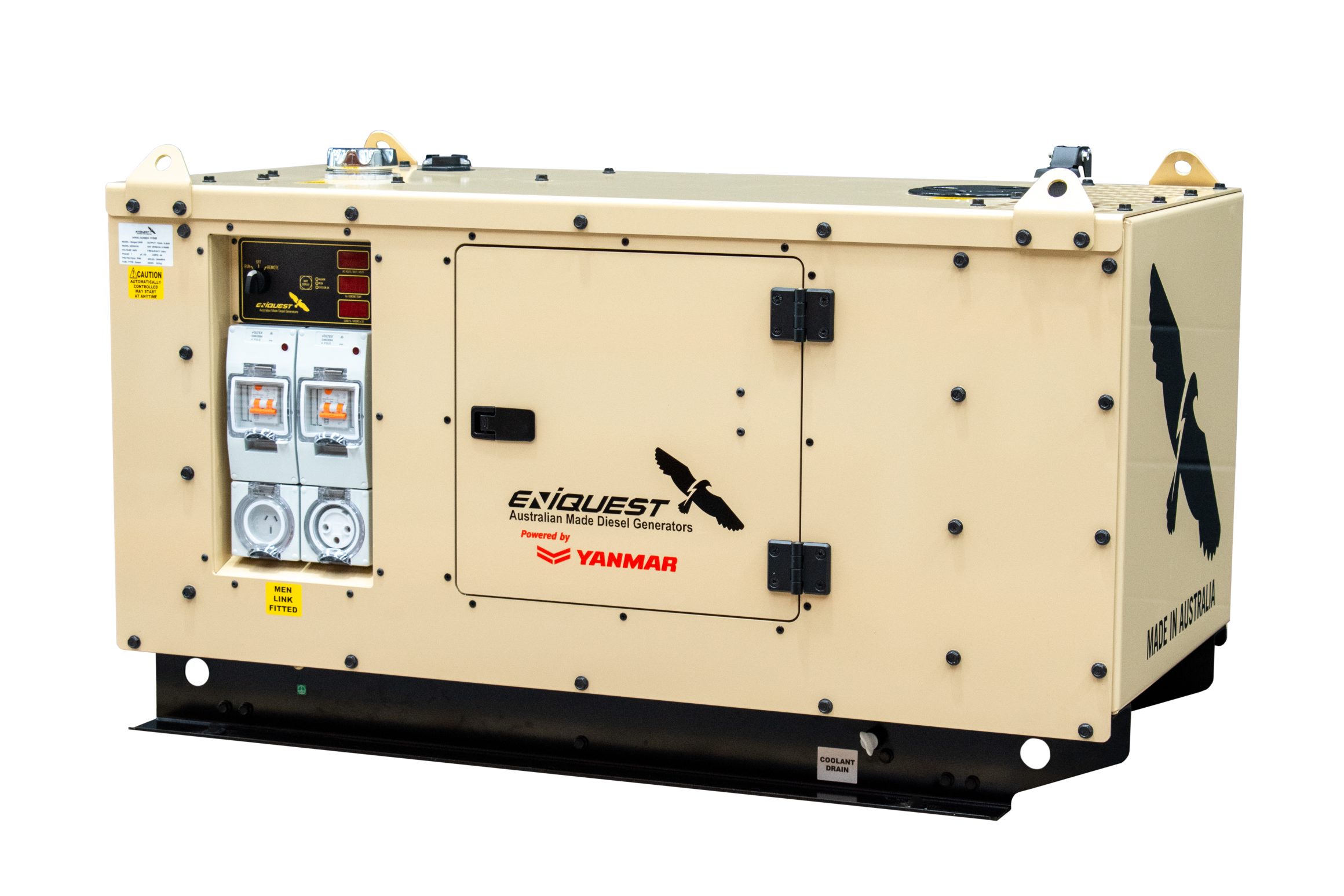

Ranger 13000 Diesel Generator

Ranger 13000 Diesel Generator

The Ranger 13000 three phase diesel generator is a game changer for the industry. It is the most compact, quiet, and efficient 3000 RPM 13kVA portable diesel generator in this segment and is the best market alternative available. Commonly used for domestic back up power, portable power including construction sites, market stalls and site rentals. Built in a lightweight aluminium enclosure, using a high output permanent magnet alternator bolted to a 3-cylinder Yanmar engine.

The Ranger 13000 diesel generator uses up to 25% less fuel than some other 13kVA generators running at 3000rpm. How? Thanks to the high efficiency of the permanent magnet alternator of up to 95.5% efficiency. Don’t let the high RPM engine distract you from longevity, this Yanmar engine is built and rated for 3,600 RPM constant speed, the Ranger 13000 runs at 3,000 RPM.

The Ranger 13000 is one of the quietest on the market in this size. Fitted with a dual muffler system, premium sound insulation panels and 45° anti-vibration mounts to ensure quiet operation. This generator is a perfect fit for residential and construction industries when minimal noise is required.

Reliability is key, the alternators used in the Ranger series of generators do not use electronics to regulate voltages. This removes a common failure point seen in most generators. A mechanical design, the pure sinewave output is completely natural and perfect for sensitive electronics.

New to the Ranger, they now come with a 3 year, 3,000 hour warranty for peace of mind.

There are a wide range of options available for the Ranger series. This includes larger fuel tanks, mine spec and many more.

Unsure if this is the right size for you? Use our simple generator calculator to work out the correct size for your application.

Download Brochure
Hand built, Australian Made product
Permanent Magnet Alternator with Pure Sine Wave Voltage Output
Class leading fuel economy
Mechanical Design that Self Regulates Voltage, No AVR Required
Silenced Enclosure with Premium Studio Quality Sound Insulation and Dual Muffler Setup
General Service Components At One Side, 250 Hour Service Intervals
Rust Resistant with Aluminium Panels & Zinc Rich Primed Steel Base Frame
PM330 Controller with Full Engine Protection and 2-Wire Remote Start, Made in Australia
World Renowned Yanmar Industrial Engine
3 Year, 3000 Hour Warranty
140L Bunded Fuel Tank
A 140L tank will keep running without needing to refuel as often. Perfect for when the generator is in a hard to access setting.
24 Hour Countdown Timer
The easy to use digital countdown timer allows the user to set the generator to run for a pre-determined time, then shut the generator down. This replaces the need to run the fuel tank dry which creates a lot of issues.
7-Day Timer
The 7-Day timer is a perfect option for allowing the user to set the generator to start at any particular time and day, and shut the generator down at any time and day.
Pump Pressure Shutdown
Want the generator to shut down when your water pressure reaches a pre-determined setting. This uses a mechanical gauge that reads your water pressure and shuts the generator down when pressure is too high or too low.
Hardwire Terminal Studs
If the generator is going to be used as backup power, then it may be better to have the power hardwired to the generator rather than extension cords. This option removes the outlets and replaces the RCBO’s to standard MCB’s. *Single phase only
Mine Spec
Needed to suit mining application? We fit the 140L under base fuel tank, single lift point, e-stop, battery isolator, lockable cabinet, forklift pockets and a fire extinguisher to the generator. *May not suit all mine spec requirements, contact us to discuss.
Emergency Stop (E-Stop)
An E-Stop may be required to meet site safety requirements. This E-stop is located in a convenient location on the generator controller.
Battery Isolator
Whilst the controller does not draw power when in standby, a battery isolator is a good addition for when servicing your generator, locking a generator out from being started or placing into long term storage.
Lockable Cabinet
Typically, most people don’t need to lock the generator enclosure however, there are some applications where locking the cabinet is required to keep unauthorized people from touching things they shouldn’t. Padlock brackets are fitted to the doors and fuel filler cap.
Forklift Pockets
Can’t lift the generator but have a forklift? The forklift pockets are bolted to the base frame or tank and allows the generator to be moved around by a forklift.
Single Lifting Point
The generator has 4x lifting points on the top corners of the enclosure. Sometimes it’s easier to lift with just one point, this option adds a single lift point in the centre, and keeps the corner points to use as tie downs for transport.

Standard Specification

  • ModelRanger 13000
  • Continuous Output13kVA | 10.4kW
  • Voltage230/400V 50Hz Three Phase
  • Current @ 0.8pf18.5A Per Phase
  • Outlets1x 20A 5 Pin, 1x 15A 3 Pin GPO
  • Engine3TNM68-HA
  • Engine RPM3000
  • Fuel Tank Capacity25L
  • Fuel Consumption3.30L Per Hour
  • Alternator ModelRFL RF2-17.5
  • Alternator Type2 Pole Permanent Magnet Radial Flux
  • Voltage ControlInherent, Non-Electronic (Self Regulating)
  • THD %1.5%
  • Alternator Rating17.5kVA
  • Alternator Efficiency95.2%
  • Generator ControlPM330 with 2 Wire Remote Start and Full Engine Protection
  • Noise at Full Load65dB(A) at 7 Metres
  • Dimensions1274 x 626 x 762
  • Weight322kg
  • Warranty3 Years, 3000 Hours Warranty
Bore Pumping & Irrigation
Centre Pivot
General Agriculture Power
Mining
Construction and Site Power
Standby Back Up Power
Solar & Off-Grid
Telecommunications
Emergency and Disaster Power

Description

The Ranger 13000 three phase diesel generator is a game changer for the industry. It is the most compact, quiet, and efficient 3000 RPM 13kVA portable diesel generator in this segment and is the best market alternative available. Commonly used for domestic back up power, portable power including construction sites, market stalls and site rentals. Built in a lightweight aluminium enclosure, using a high output permanent magnet alternator bolted to a 3-cylinder Yanmar engine.

The Ranger 13000 diesel generator uses up to 25% less fuel than some other 13kVA generators running at 3000rpm. How? Thanks to the high efficiency of the permanent magnet alternator of up to 95.5% efficiency. Don’t let the high RPM engine distract you from longevity, this Yanmar engine is built and rated for 3,600 RPM constant speed, the Ranger 13000 runs at 3,000 RPM.

The Ranger 13000 is one of the quietest on the market in this size. Fitted with a dual muffler system, premium sound insulation panels and 45° anti-vibration mounts to ensure quiet operation. This generator is a perfect fit for residential and construction industries when minimal noise is required.

Reliability is key, the alternators used in the Ranger series of generators do not use electronics to regulate voltages. This removes a common failure point seen in most generators. A mechanical design, the pure sinewave output is completely natural and perfect for sensitive electronics.

New to the Ranger, they now come with a 3 year, 3,000 hour warranty for peace of mind.

There are a wide range of options available for the Ranger series. This includes larger fuel tanks, mine spec and many more.

Unsure if this is the right size for you? Use our simple generator calculator to work out the correct size for your application.
