Military Auxiliary Power Unit APU 8.0
Military Auxiliary Power Unit APU 8.0

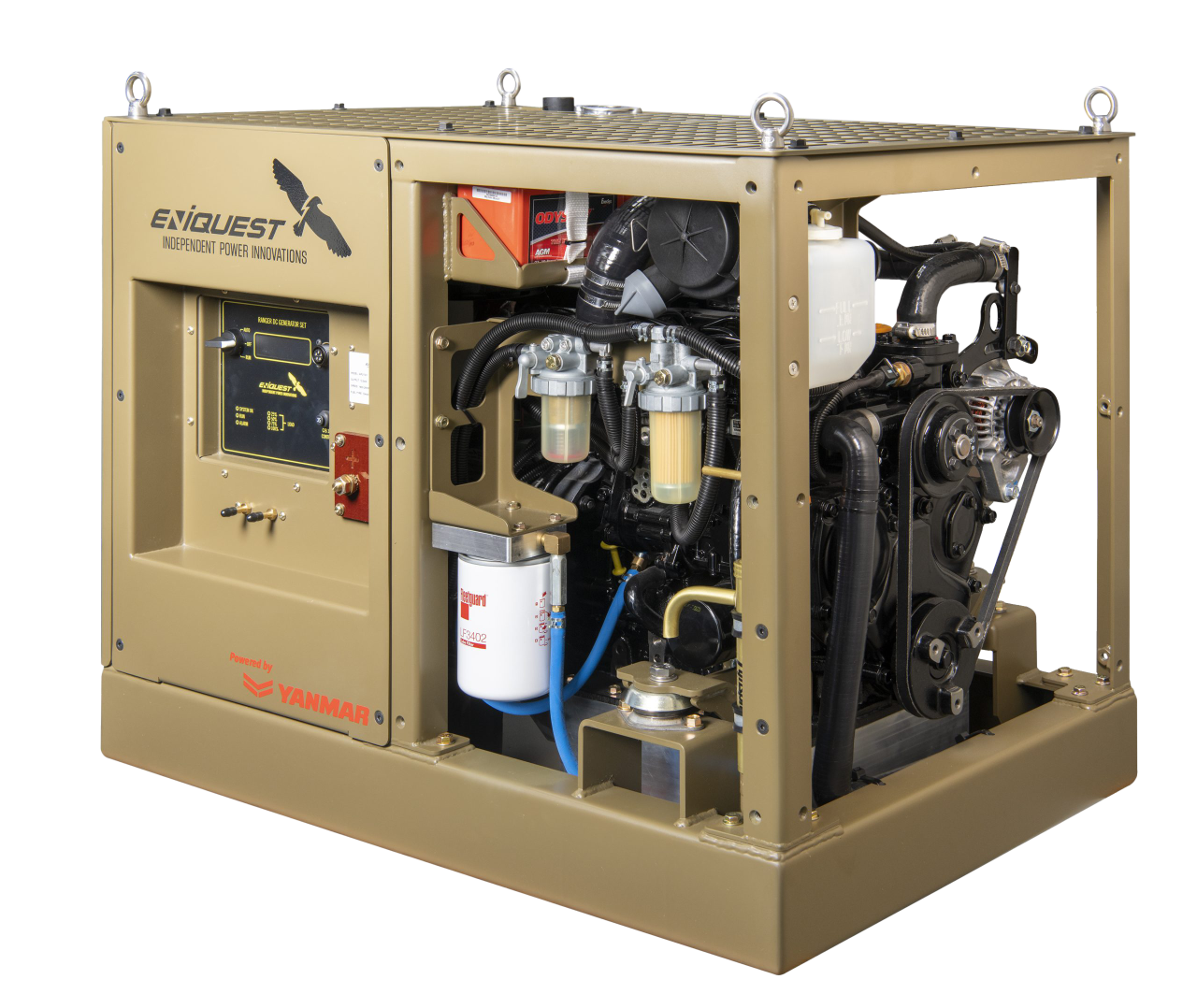

Military Auxiliary Power Unit APU 8.0 Diesel Generator

APU8.0 combines a most compact, smooth running, water cooled Yanmar industrial diesel engine with a unique Eniquest developed and manufactured, totally enclosed water cooled 28V DC permanent magnet alternator. This compact light weight highly efficient Eniquest alternator makes for a signification reduction in size and mass of the overall APU package.

Packaged in a robust frame with inbuilt vibration isolating mounts provides easy access for scheduled and non-scheduled servicing, makes the APU8.0 an ideal choice for military vehicles.

This product is for Military use only. We have the ability to produce custom solutions to suit any requirements. Contact us today for more information.

Download Brochure
  • Australian Designed and Made
  • Extremely Compact
  • Meets all relevant MIL Standards
  • Regulated DC Voltage Output
  • 24V Electric Start
  • Remarkable Fuel Economy
  • Easy Maintenance
  • Totally Enclosed, Australian Made, Water-cooled Alternator
  • Able to be reconfigured for any servicing and exhaust orientation

`11

ModelAPU 8.0
Generator
Continuous Output kW8.0 kW
Output Voltage28V DC
Continuous Current285A
Voltage RippleLess than 3%
Voltage StabilityLess than 2%
Engine
Engine MakeYanmar
Engine Model3TNM74F
Engine TypeDiesel, Naturally Aspirated, In-direct Injection, Industrial
Engine Displacement0.993L
Engine Speed ControlElectronic
Engine RPM1500 – 1800 Variable
No. of Cylinders3
CoolingLiquid Cooled with Heavy Duty Aluminium Radiator and Thermo Fan
Oil Capacity4.5 Litres
Oil Type15W40 API:CJ4/ACEA:E9 in -19°C to +44°C Conditinos
Crank Case Oil RemovalOn-Board Hand Pump
Coolant Type50% Glycol Mix (Red) AS2108-2004 Type A, SAE J1034
Starting System24V
Starting BatteryNone- Use Host Vehicle
Service Intervals250 Hours
Fuel System
Fuel TypeAutomotive Diesel or JP8
Fuel Lift PumpElectronic
On-Board Tank CapacityNone- Use Host Vehicle
Fuel Consumption (Diesel)2.5L Per Hour @ Full Load
Alternator
Alternator Make/ModelEniquest EQ8.0
Alternator TypePermanent Magnet, Brushless, Bearingless
Frame TypeTotally Enclosed
WindingsDual 3 Phase Delta Connected
Number of Poles12
Rectifier TypeFull Wave Double Bridge
Voltage ControlVariable Engine Speed Control
Voltage Control AccuracyWithin ±2%
Alternator to Engine CouplingDirect Drive
Alternator CoolingCoolant from Engine Radiator
General
Generator ControllerEniquest PM104 with CAN Connectivity, Full Generator Management with Digital Display
Enclosure TypeOpen Frame with Bunding
Noise Full Load @ 7m64 dB(A)
Vibration IsolationHigh Isolation Angles at 45°, Horizontal Movement Restraint
Maximum Operation25° Angle, -32°C to +49°C, 1200m Above Sea Level
Handling4x Top Mounted Lifting Points
Exhaust Discharge & Air Intake DirectionConfigured to Suit Application
Electrical Output ConnectionPositive & Negative Busbar
Dimensions L x W x H900 x 590 x 600
Weight298kg

3

Description

APU8.0 combines a most compact, smooth running, water cooled Yanmar industrial diesel engine with a unique Eniquest developed and manufactured, totally enclosed water cooled 28V DC permanent magnet alternator. This compact light weight highly efficient Eniquest alternator makes for a signification reduction in size and mass of the overall APU package.

Packaged in a robust frame with inbuilt vibration isolating mounts provides easy access for scheduled and non-scheduled servicing, makes the APU8.0 an ideal choice for military vehicles.

This product is for Military use only. We have the ability to produce custom solutions to suit any requirements. Contact us today for more information.
